Description

Power Source 220 – 240 V AC, or 24 V DC

Rated Output 120 W

Power Consumption 124 W (EN60065), 8 A (DC operation at rated output)

Frequency Response 50 – 20,000 Hz (±3 dB)

Input MIC 1: -60 dB*, 600 Ω, balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 Ω, balanced, phone jack
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

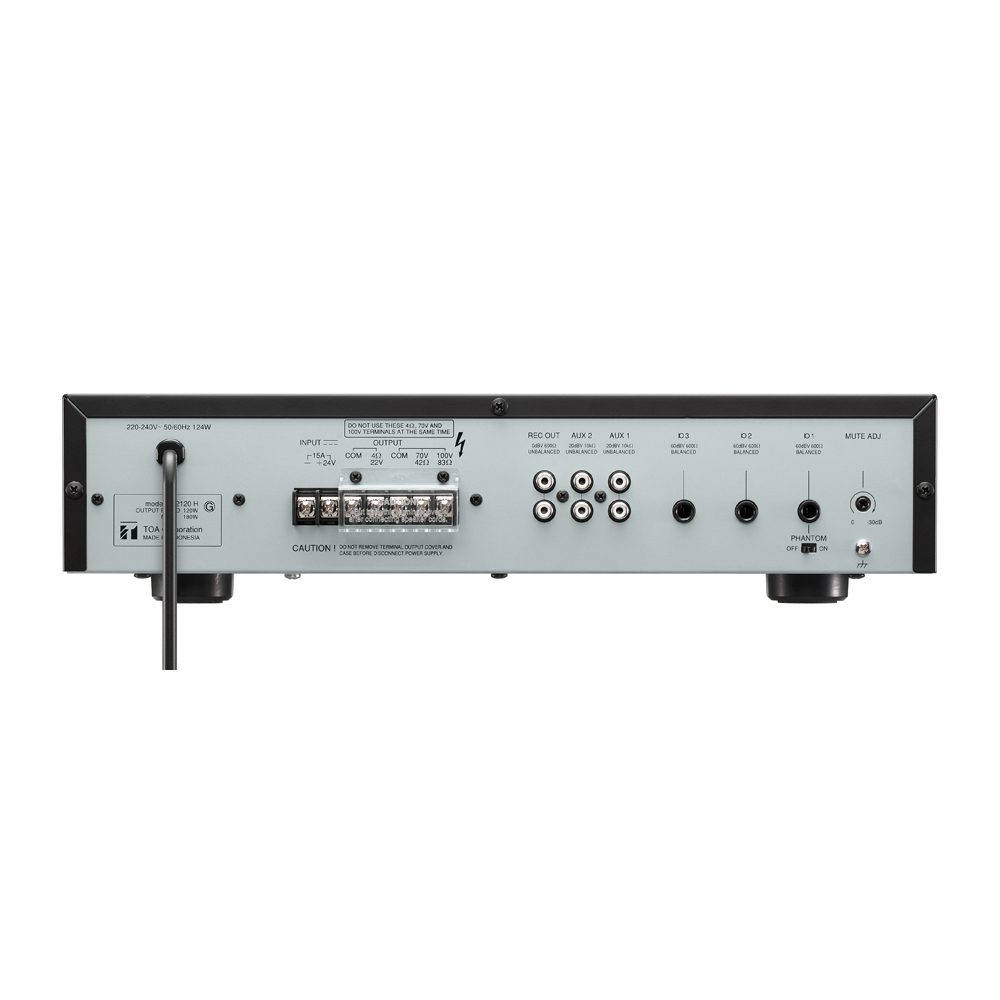

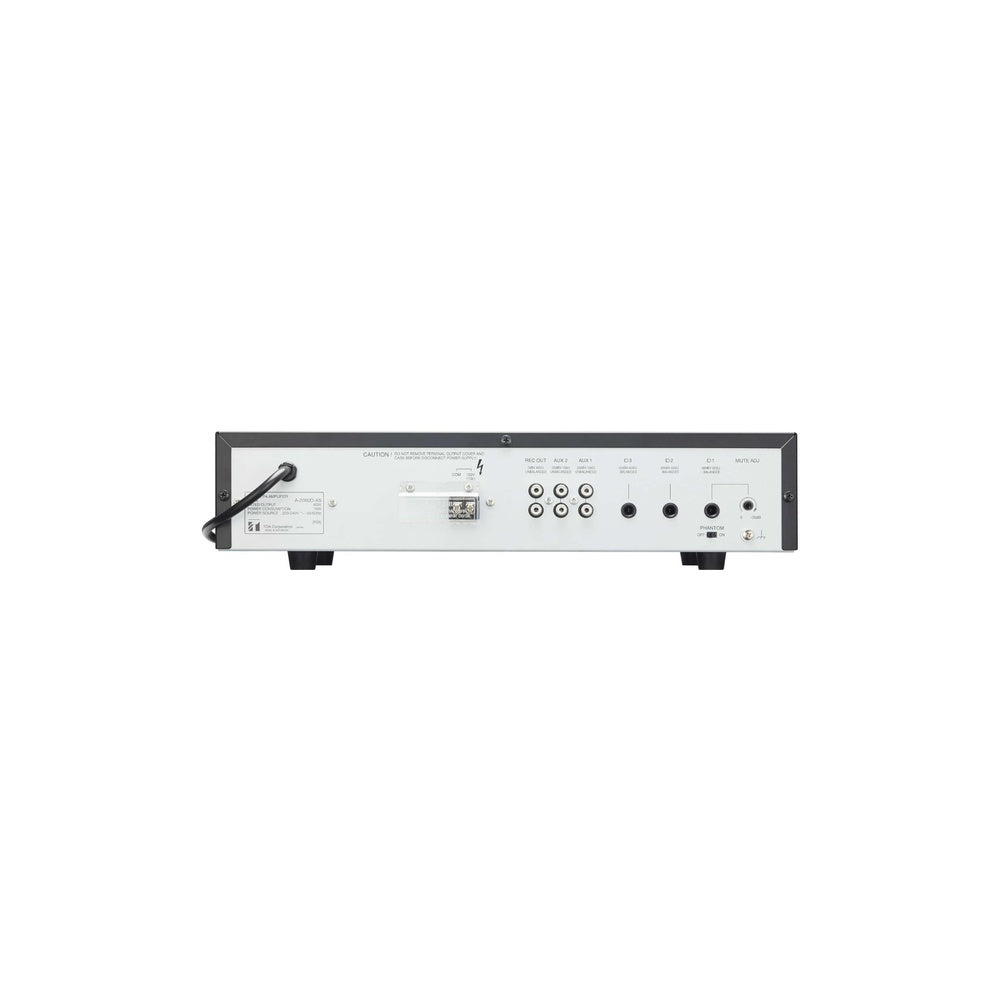

Output
Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33″)
High impedance: 83 Ω (100 V), 42 Ω (70 V)
Low impedance: 4 Ω (22 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
distance between barriers: 8.3 mm (0.33″)

Phantom Power DC +21 V (MIC 1)

S/N Ratio 60 dB or more

Dimensions 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″)
Weight 10.8 kg (23.81 lb)
