Highlights:

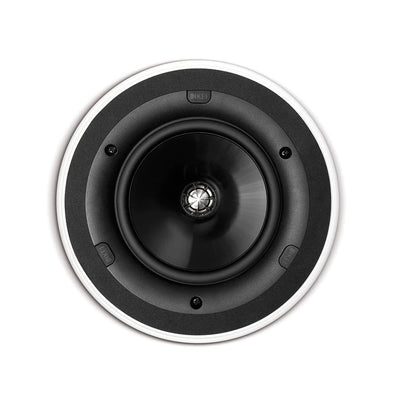

- Uni-Q Driver Array: The KEF Ci160QR Ceiling Speaker features an advanced Uni-Q driver array for exceptional audio performance with a wide sound dispersion.
- Wide Frequency Response: Experience accurate sound reproduction with a frequency response range from 38Hz to 34kHz (±6dB) in a 2pi/open-backed design.
- Enhanced Amplifier Compatibility: The Ci160QR is compatible with a wide range of amplifiers, offering versatility and ease of integration into any audio setup.
- Sleek Ceiling Mount Design: With its low-profile and discreet design, the Ci160QR seamlessly blends into any environment, making it ideal for home audio and commercial installations.
- Easy Installation: The Ci160QR comes with a cut-out template and mounting instructions for straightforward installation on various ceiling thicknesses.
- Optional Rough In Frame: The RIF160R optional accessory allows for easier pre-installation and ensures a precise fit during setup.
Elevate Your Audio Experience
Immerse yourself in captivating audio with the KEF Ci160QR Uni-Q Driver Array Ceiling Speaker. Its advanced Uni-Q driver array provides a wide and even sound dispersion, delivering an exceptional listening experience with precise sound imaging and deep bass response. Whether you’re enjoying music or watching movies, this ceiling speaker brings entertainment to life.
Specifications:
| Specification | Details |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity | 89dB (2.83V/1m) |
| Crossover Frequencies | 3.0kHz |
| Frequency Response | 38Hz – 34kHz (±6dB) 2pi/open-backed |
| Drive Units | LF: 160mm (6.5in.) HF: 19mm (0.75in.) |
| Recommended Amplifier Power | 10 – 125W |
| Product External Dimensions (H x W x D) | Diameter: 234.6mm (9.24in.) Depth: 98mm (3.86in.) |
| Cut-Out Dimensions (H x W) | Diameter: 196mm (7.71in.) |
| Mounting Thickness | Ceiling Thickness (Maximum): 36mm (1.42 in.) Ceiling Thickness (Minimum): 6mm (0.24 in.) |
| Mounting Depth From Surface | Product only: 91mm (3.58in.) |
| Optional Rough In Frame | RIF160R |
| Net Weight | 2.05kg (4.51lbs.) |
Elevate your audio setup with the KEF Ci160QR Uni-Q Driver Array Ceiling Speaker. Its sleek design, wide frequency response, and compatibility with a range of amplifiers make it a versatile and high-performance addition to your home or commercial audio system. Experience premium sound quality and seamless integration with this exceptional ceiling speaker.
