JVC DLA-NZ8 Home Theater Projector

The DLA-NZ8 D-ILA projector is the world first (as of September 2021, according to a research by JVCKENWOOD) home theater model to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shiftX proprietary technology with 4-direction shift to reproduce 8K-quality image from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, high-quality 17-element, 15-group all glass 65 mm lens and Ultra-High Contrast Optics that contribute to deliver optical brightness of 2,500 lumens.

• Newly developed 8K/e-shiftX technology reproduces 8K image quality
• BLU-Escent Laser Light Source
• 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
• New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• 17-element, 15-group all-glass 65mm diameter high-quality lens
• High brightness of 2,500 lm provides vibrant and dynamic images
• Native Contrast Ratio of 80,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life



Device
D-ILA Technology Yes
Chip Type 0.69-inch 4K D-ILA device
Native Resolution 4096 x 2160
Number Of Chips 3
8K/e-shiftX Yes
Display Resolution 8192 x 4320

Light Source
Laser Yes
Type BLU-Escent Laser Diode
Life Time (Standard Mode) 20000 hours

Brightness 2500 lm
Dynamic Contrast ∞ : 1
Native Contrast 80000 : 1
Dynamic Light Power control Yes
Modes Mode 1 (gentle), Mode 2 (strong), Off
Manual Aperture Yes
Range -15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut Yes
100% REC 709 Yes
Color Bit Depth 12 bit
ISFccc Certification Yes

HDR
HDR10 Yes
HDR10+ Yes
Frame Adapt HDR Yes
Theatre Optimizer Yes
HLG Yes
Auto Tone Mapping Yes
Mastering Info Display Yes
Info data MaxCLL and MaxFALL mastering data
HDR Picture Modes BT.709 / BT.2020 / DCI / HDR

Lens
Zoom 2 x
Throw Ratio 1.43-2.92:1
Diameter 65 mm
Material All-glass
Build 17-element, 15-group in full aluminium lens barrel.
Lens Shift Yes
Range Horizontal ± 34 %
Range Vertical ± 80 %
Motorized Zoom Yes
Motorized Shift Yes
Motorized Focus Yes
Projection Display size (diagonal) 60 – 200 inch
Memory Function Yes
Number of user presets 10
Lens Cover Yes

HDMI
Number of connections 2
Data Rate 48 Gbps
HDCP Version 2.3
8K60P signal input Yes
4K120p signal input Yes
4K60P signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB
EDID Modes A and B (older hardware may need to use B settings)

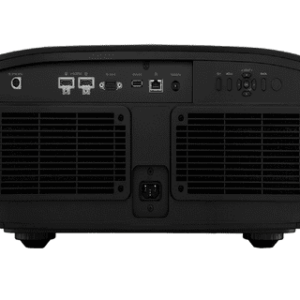

Connections
Trigger out Yes
Connector Mini-Jack (3,5mm)
Power DC 12V / 100mA
3D Synchro Yes
Connector Mini DIN 3-pin
LAN Yes
Connector RJ45
RS-232 Yes
Connector D-sub 9-pin
Service Yes
Connector USB (Type A) for firmware update.

3D
3D Capability Yes
3D Versions Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions 720p 60/50, 1080p 24
Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution 720p 60/50, 1080p/24
3D Emitter (Optional) Yes, PK-EM2
3D Glasses (Optional) Yes, PK-AG3

Picture Settings
Picture Modes Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth 12 bit
Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
Color Management 6-Axis adjustable CMS
MPC Yes
Low Latency Mode Yes
Clear Motion Drive Yes
Motion Enhance Yes
Auto Calibration Yes
Optional Probe needed Yes
Installation Mode Yes
Number of presets 10
Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect
Anamorphic Modes 4 Modes (A, B, C, D)
Control4 SDDP Yes

Power & Environment
Power Requirement AC100-240V, 50/60Hz
Projector in Use 440W
Standby Eco Mode 0.20W
Network Standby 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
Switchover time Approx. 15 min. (To standby or networked standby; default)
Fan Noise 24 dB
Eco Mode Yes
Standby Timer Yes
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80%
Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree
Installation Height Below 2,000 m

In the box
Remote Control Yes, RM-MH27
User Manual Yes
Power Cord Yes
Batteries Yes, 2 x AAA-size batteries
