The CSM 28 – Eight Inputs/Two Outputs Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs.

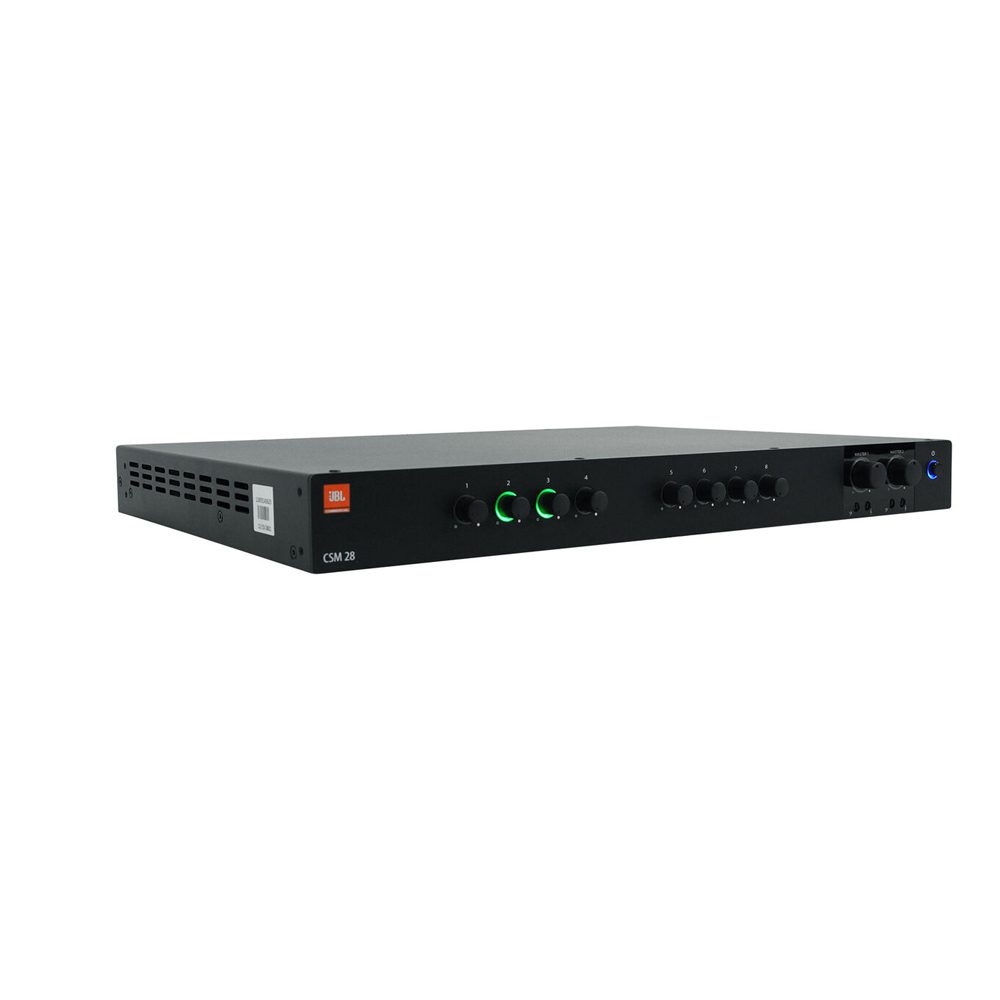

JBL CSM 28 8 Inputs 2 Outputs Commercial Series Mixer
JBL CSM 28 offers 4 or 8 inputs with 1 or 2 channel outputs
Sensitivity (SPL / 1 W @ 1 m) Mic: 3 mV RMS Line: 300 mV RMS RCA: 300 mV RMS
Impedance Mic: 400 ohms Line: 20 kOhms RCA: 50 kOhms
Frequency Response 20 to 20,000 Hz ±1 dB Max. Power Consumption 10 W,
Power Required: 100 to 240 V thermal fuse in external transformer
Dimensions 1.7 x 17.2 x 11.9″ (43.3 x 437 x 303.4 mm)
Fanless, space-saving 1U design
Independent bass/treble controls

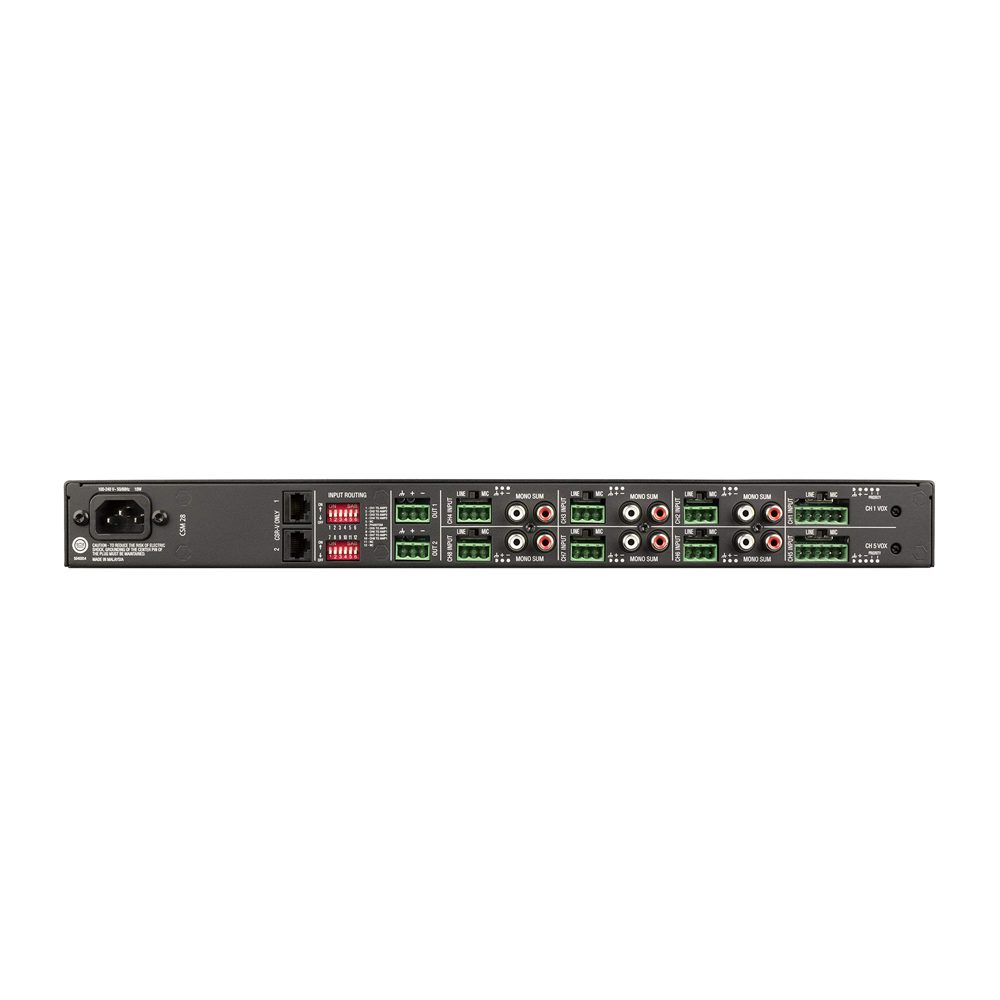

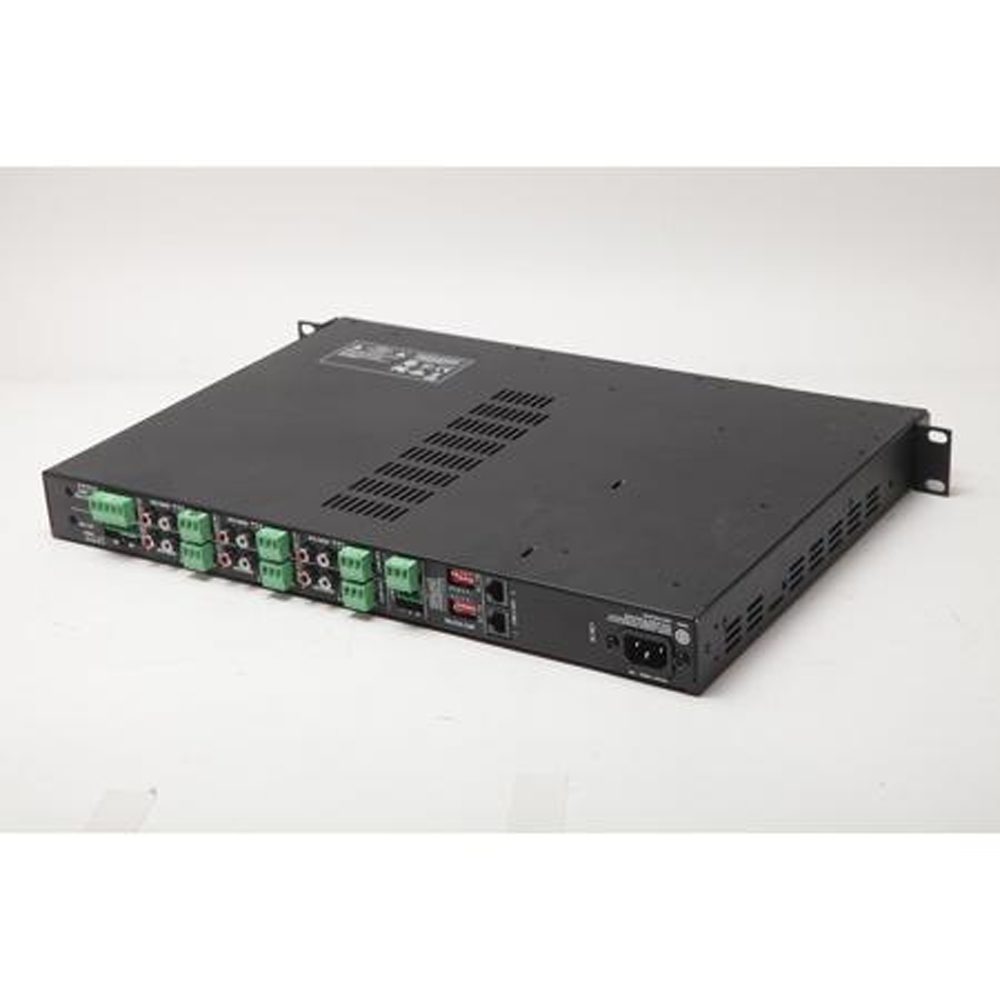

Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
Supports JBL CSR-V wall controller via Ethernet cable
