The JBL CSA280Z supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company’s CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN’s GreenEdge environmental initiative.

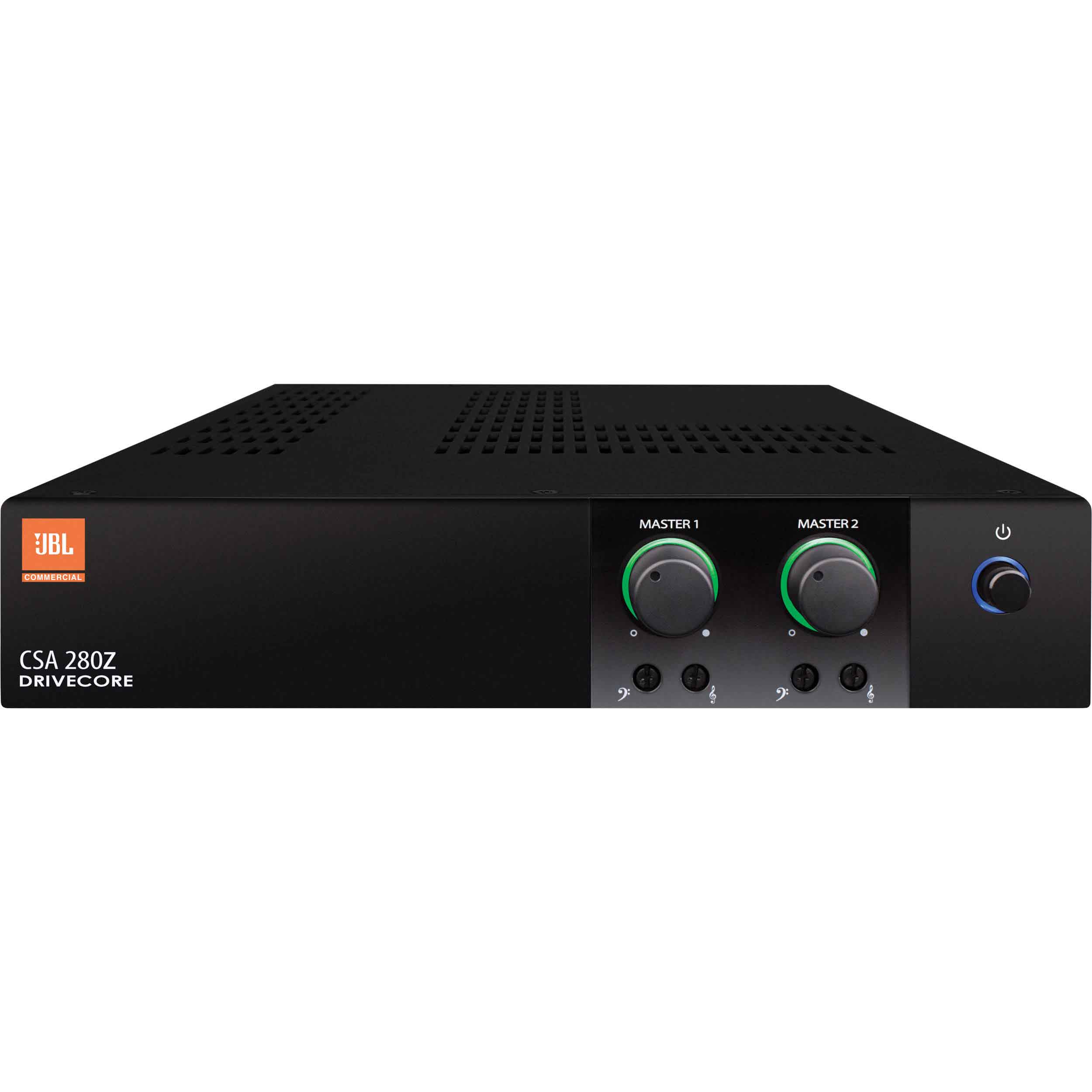

JBL CSA280Z Audio Powerful Amplifier 2 x 80W
JBL CSA280Z offers 1 or 2 output channels with 40W, 80W, 120W per channel
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Weight 3.40 Kg
Power Capacity 4 Ohms / 8 Ohms: 80 W (1 kHz, 0.5% THD)
Impedance 4 Ohms (Minimum) 70 / 100 V
Dimensions 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm
Built-in 70V and 100V
Fanless, space-saving 1U design
Sleep mode disable function
Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
