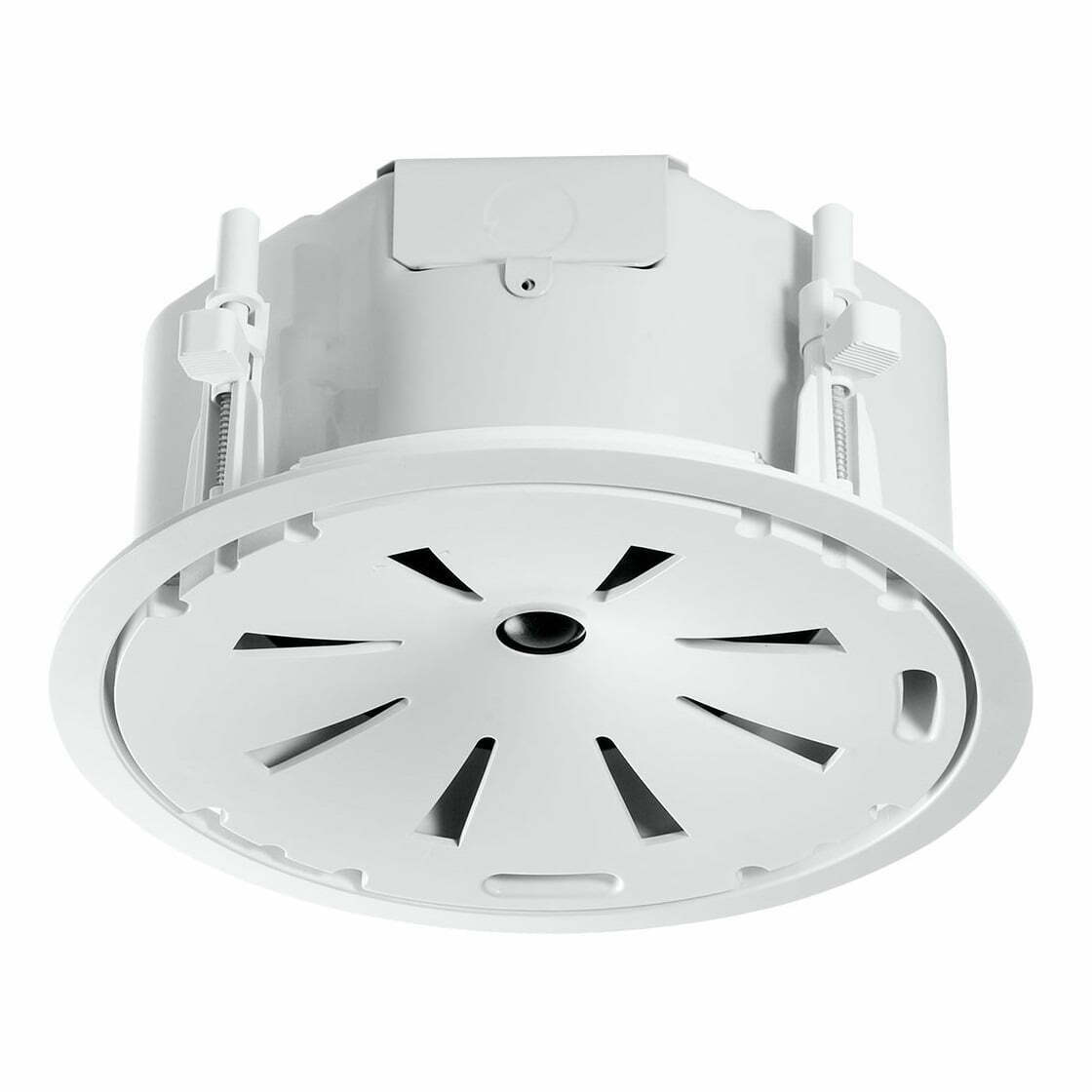

JBL Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance.
Frequency Range: 68 Hz – 20 kHz
Coverage Angle: 120° conical, constant directivity
Impedance: 8 ohms (in bypass mode)
Power Rating: 150 Watts Continuous Program Power and 75 Watts Continuous Pink Noise (300W peak), hrs
Drivers: LF Driver: 165 mm (6.5 in) and HF Driver: 25 mm (1 in)
Maximum SPL (1m): 110 dB (low-impedance, 116 dB peak) and 109 dB (top 70V/100V tap)
Dimensions (Diameter x Depth): 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
