Highlights:
- Powerful Cinema Amplification: The Crown XLC 21300 is a 2-channel power amplifier designed specifically for professional cinema applications, delivering a total of 1,300W of power to enhance the cinematic audio experience.
- High Performance: With its exceptional power output and advanced engineering, this amplifier ensures optimum performance and clear, dynamic sound reproduction.
- Reliable and Efficient: The XLC 21300 is built with reliability and efficiency in mind, making it a trusted choice for cinema installations and demanding audio environments.
- Professional Cinema Applications: Ideal for powering cinema speakers and audio systems, the XLC 21300 is tailored to meet the rigorous demands of professional cinema installations.
- Robust Construction: Designed to withstand continuous operation, the XLC 21300 features a rugged build to ensure long-lasting performance.
Overview:

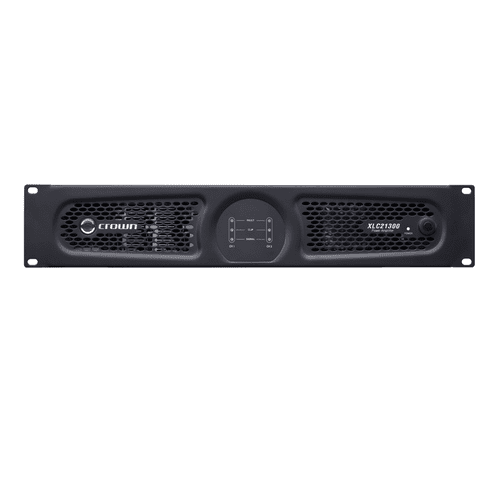

The Crown XLC 21300 2-Channel Power Amplifier is the ultimate solution for pro cinema applications, providing a total power output of 1,300W to elevate the audio experience in any cinema setting. With its high performance, reliability, and efficiency, this amplifier is specifically engineered to meet the demands of professional cinema installations, delivering powerful and pristine audio to captivate audiences.
Specifications:
| Channels | 2 |
| Output Power (@ 1 kHz) | 8Ω: 1000 watts x 2 4Ω: 1300 watts x 2 8Ω Bridged: 2,700 watts x 1 |
| Frequency Response (@ 1W, 20 Hz–20 kHz) | +0 dB, -1 dB |
| Signal-to-Noise Ratio (Ref. Rated Power, 8Ω, 1 kHz) | >100 dB |
| THD | <0.5%, 20 Hz–20 kHz |
| Damping Factor (8Ω, 10 Hz–400 Hz) | >200 |
| Intermodulation Distortion | <0.35% (60 Hz and 7 kHz at 4:1 from full rated output to -30 dB) |
| Crosstalk Separation | >75 dB (below rated 8 ohms power at 1 kHz); >59 dB (below rated 8 ohms power at 20 kHz) |
| Input Impedance (Nominal) | 20kΩ balanced, 10kΩ unbalanced |
| Voltage Gain | 36 dB |
| Load Impedance | 4–8Ω per channel in stereo, 8Ω bridged |
| Input Connectors | 1 x 6-pin Phoenix female, 1x HD-15 female |
| Output Connectors | 4-pin barrier strip |
| Input Modes | Dual, input Y |
| Output Modes | Stereo, bridged mono |
| Input Sensitivity (Full Rated Power @ 4Ω) | 1.4V |
| LED Indicators | Power, signal, clip, bridged output and fault (Power LED = standby, normal operation and default) |
| AC Line Voltage and Frequency (±10%) | 120 VAC, ~60 Hz; 220 VAC, ~50/60 Hz; 230–240 VAC, ~50 Hz |
| Unit Dimensions (D x W x H) | 366 x 482.6 x 88.9 mm (14.4 x 19 x 3.5 in) |
| Net Weight |
